AOI | SKU:
VWS-02-M16
Sold out

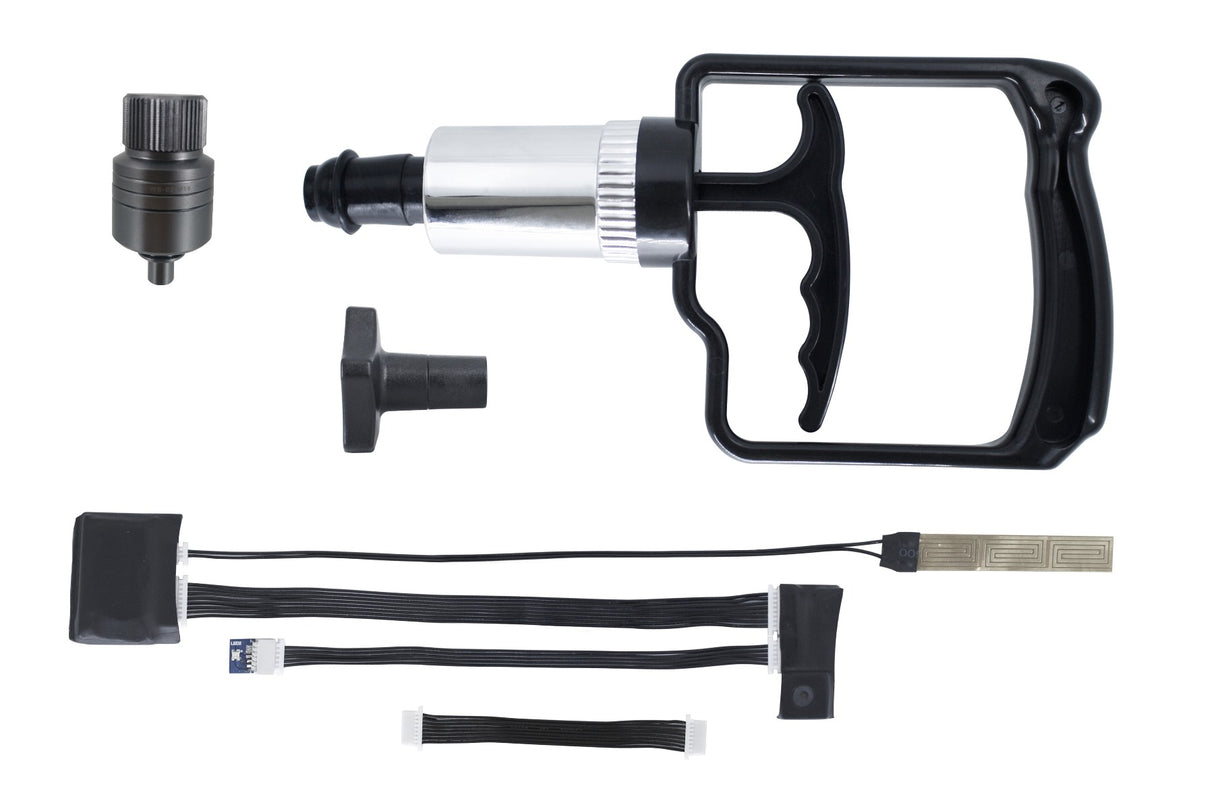

AOI VWS-02-M16 Vacuum Analyzation & Wet Detection System Kit
7,750.00 ฿
Unit price
/
Unavailable
Tax included
AOI VWS-02-M16 Vacuum Analyzation & Wet Detection System Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Standard shipping normally takes 3-5 days.
Next day shipping is available on all domestic orders (for an additional charge).
International shipping times depend on the products and destination (estimated at checkout).
Description
Description
| Model | VWS-02-M16 | |
| Description | Vacuum Analyzation & Wet Detection System Kit | |
| Valve Fastening | M16 | |
| Valve Material | Black Anodized Aluminum Alloy | |
|
Depth Rated |
100M / 330Ft | |
| Charging Time | 1.5 Hours | |
| Charging Port | 5V, 0.3A Micro-USB charging Port | |
| Power Switch | Sliding ON / OFF Switch | |
| Operation Time Per Full Charge | 4 Days (Powered by 3.7V 110mAH Lithium Polymer Rechargeable Battery) | |
| Vacuum Analyzing Time | Approx. 4 Minutes | |
| Wet Detection | All time Operation | |
| Indicator Signal Output | Piezo Buzzer (Audio Signal) Tri-color LED (Blue, Yellow, Red & Green Visual Signals) |
|
| Dimension | Vacuum Valve | Φ 22 x 34 mm (H) |
| Main Unit | 28mm(L) x 18mm (W) x 7 mm (H) | |
| Signaling & Charging Unit | 30 mm (L) x 14mm (W) x 7 mm (H) | |
| Long Connection Cable | 140 mm (L) x 5 mm (W) | |
| Short Connection Cable | 75 mm (L) x 5 mm (W) | |
| Extersion Visual Signal Board Cable | 120 mm (L) x 3 mm (W) | |
| Weight | Vacuum Valve | 16.5 g |
| Wet Detection | 5.5 g | |
| Power Source | 2.8 g | |
| Accessories | Vacuum Pump Multi Purpose Key |
|
